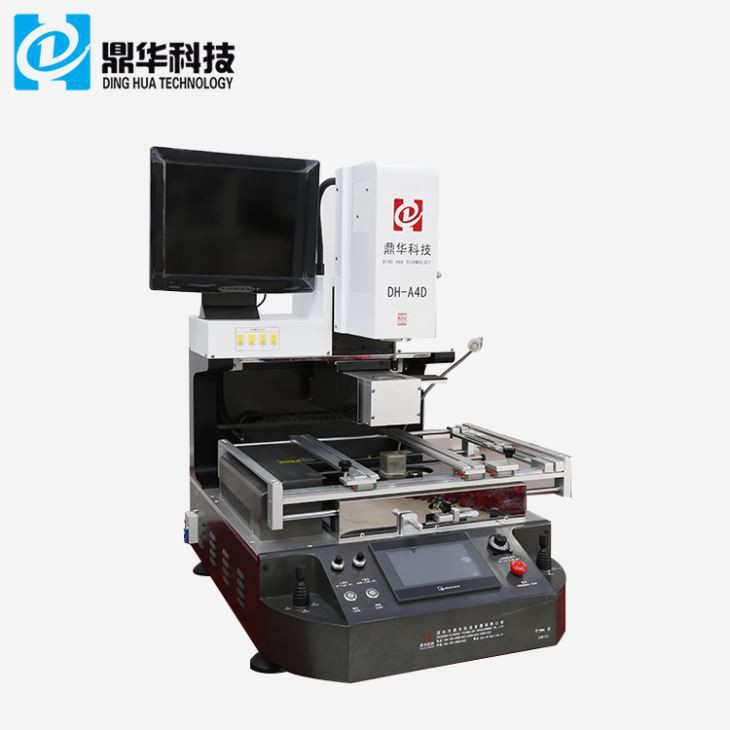

Optical Ps2 Ps3 Ps4 BGA Rework Machine

Optical ps2 ps3 ps4 bga rework machine

1. Quick preview:

DH-A4D SMD REWORK MACHINE is more professional for QFN、QFP & BGA repairing is on promotion.

Our rework station are mainly used in the rework of BGA,CCGA, QFN, CSP, LGA, Micro SMD,LED etc.With

multi-funtion and innovative design, Dinghua machine can make one-stop Romoving,Mounting and Soldering.

Warmly welcome you to visit our factory !

1. Specification of DH-A4D BGA rework machine

1. Two indepent heaters, top hot air 800W, bottom IR preheater 2400W

2. K-sensor close loop control with automatic temperature compensation system

3. Equiped with 1 high presision thermocouple

4. Temperature accuracy: ±2°C

5. Computer control can be connected to a computer to be controlled more conveniently with a

built-in PC RS232 port

6. Powerful cross flow fan

7. Built-in vaccum pen

8. Preheating area: 250*280mm

9. BGA chip:5*5~55*55mm

10. Machine dimension:(L*W*H): 470*490*600mm

11. Packing dimension: (L*W*H): 55*60*60cm Three independent heaters

12. Product  Application:

Motherboard of computer,smartphone,laptop,digital camera ,air conditioner,TV and other electronic equip-

ments from medical industry,communication industry,automobile industry,etc.

Wide range of application: BGA, PGA, POP,BQFP, QFN, SOT- 223, PLCC, TQFP, TDFN, TSOP, PBGA, CPGA,

LED chip.

2.Product Features and advantages of the DH-A4D BGA rework station

DH-A4D BGA Rework Station Main Features:

1. HD Optical alignment system for precisely mounting BGA and components.

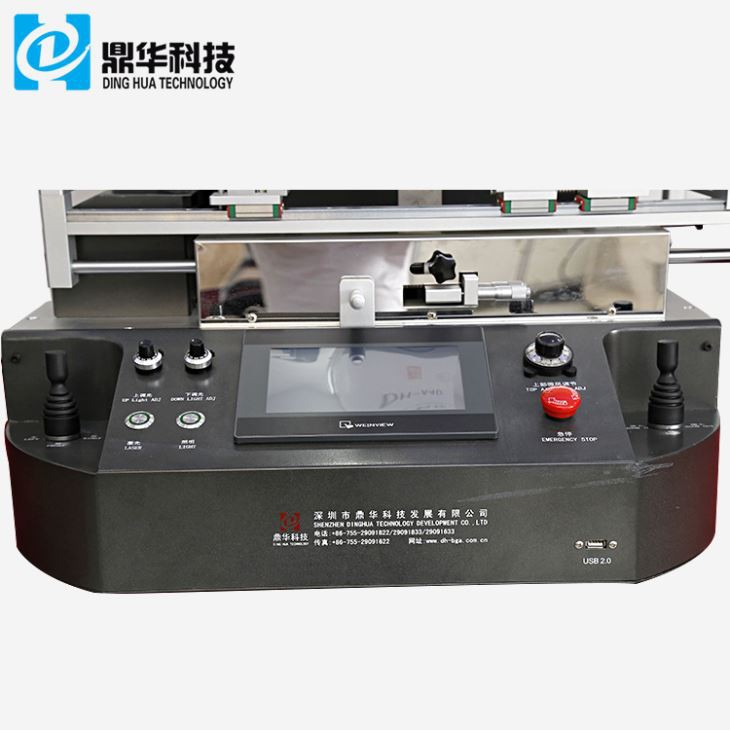

2. Touch screen and PLC control to ensure it work stably and reliably.

3. Components mounting accuracy within 0.01mm, repair success rate 99.9%.

4. Laser Positioning function for fast positioning the BGA Chip and motherboard.

5. Precise Temperature Control, accuracy within 2℃.

6. Upper temperature zone can be moved freely, Second zone can be adjusted up and down.

7. Three temperature zones to heat up independently.

8. Hot air nozzle can be rotated in 360 degree.

9. Perfect support Soldering, Desoldering, Removing and Reballing the BGA Chip.

10. Rework BGA, VGA, CCGA, QFN, CSP, LGA, SMD, etc.

11. With CE certification, double over temperature protection function.

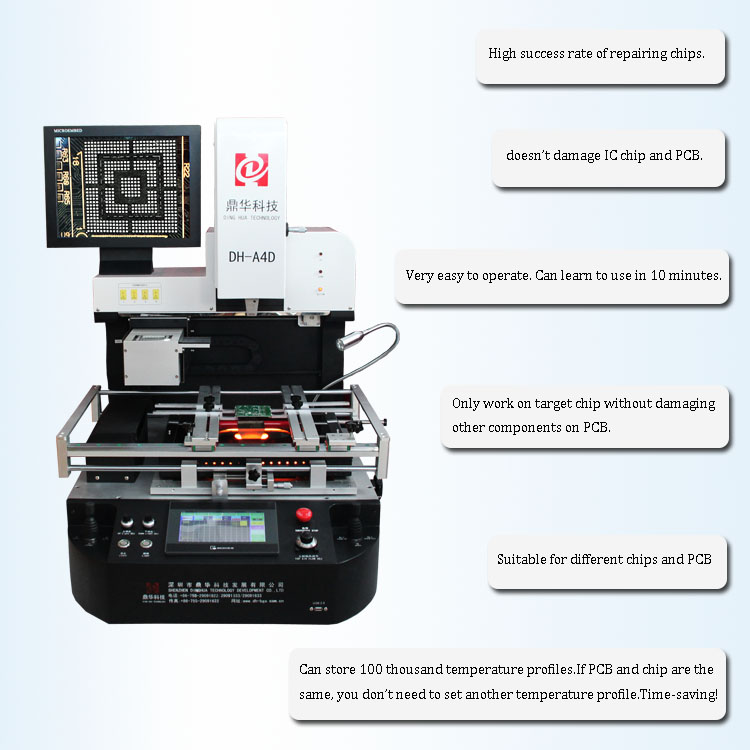

3.DH-A4D BGA Rework Station Advantages :

 Video of DH-A4D BGA rework station:

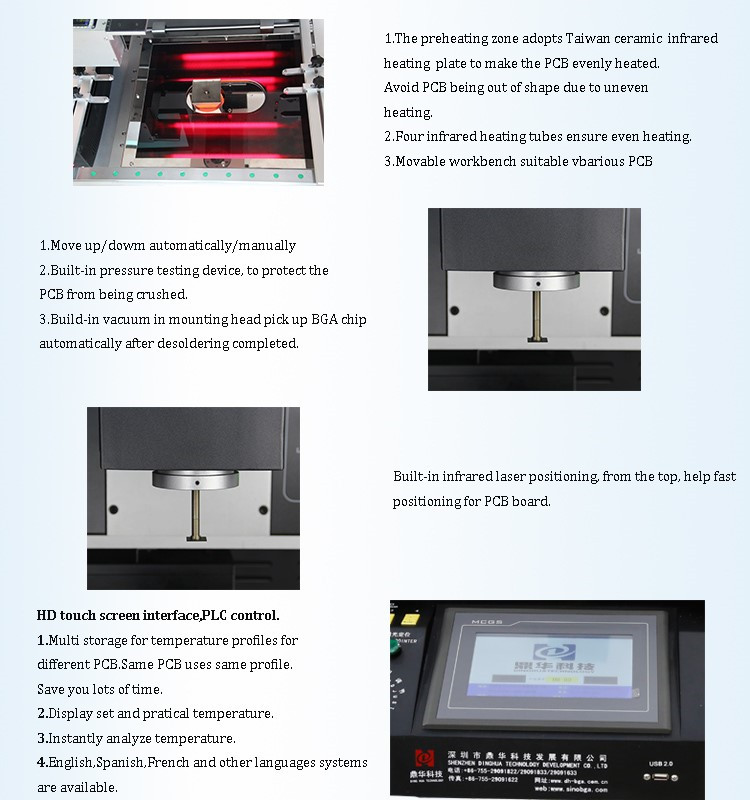

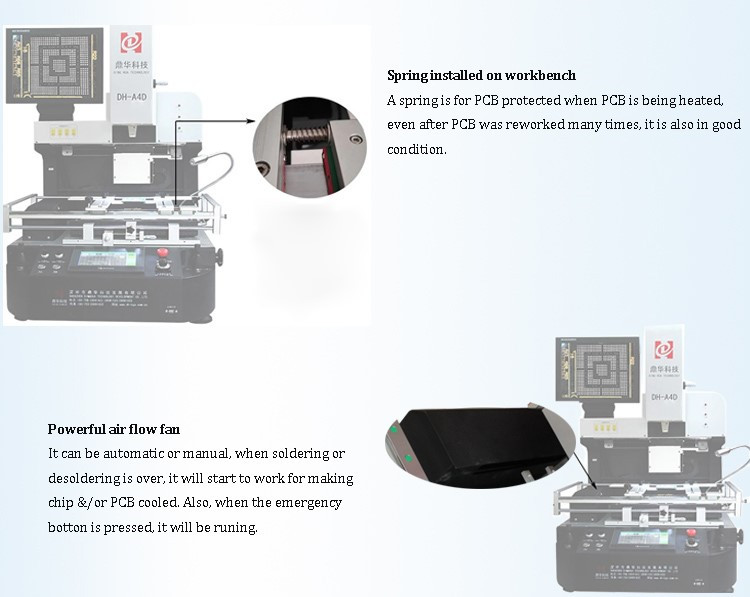

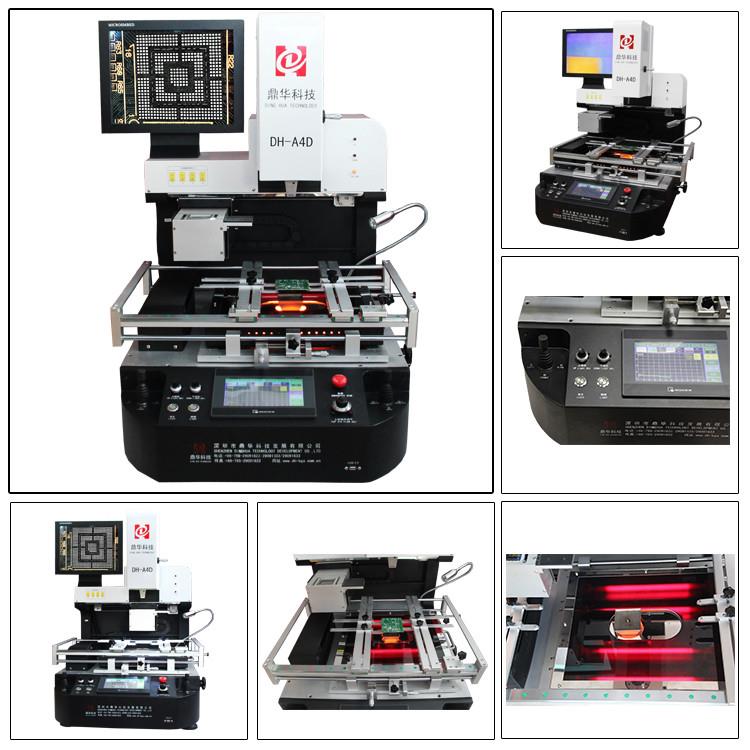

4.Detailed Images of A4 BGA REWORK STATION

5. Packing & Delivery & Services of DH-A4D BGA REWORK STATION

Packing details:

Plywood box (been fumigated),

packing size: 85*119*117cm,

accessories: nozzles, thermocouple,

innner hexagan spanners and teaching

CD etc.

6.Delivery details,By DHL, TNT, FEDEX, Air shipping, Sea shipping and Land transportation etc. taking 3~30

days to arrive at destination according to different shipping ways.

7. FAQ

Q:What’s the way of transportation?

A: Express, air and ocean shipments are all available.

Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q: What’s the minimum order quantity? How long is the delivery time?

A: Both MOQ and delivery time need to refer to the specific products. Usually, we have stock for our brand products,

 please contact our sales for details.

Q: What is the steps for bga reballing?

A: Clean the residual solder balls on the desoldered BGA. Apply evenly a thin layer of solder paste. Then use Stencil

to plant the tin balls to BGA. Place the BGA on the reballing station and start the machine, to let the solder balls melt

and fixed on the BGA.

Q:How to contact us to solve your questions?

A: Any question,pls leave us "Inquiry"& click "Chat Now" to know more details (price & discount & free gifts) ,I'll reply

you at the first time.

If u want to know more about our machine, please contact us,We are always ONLINE to serve your inquiry. Mob/Wh-

atsApp/Wechat: +86 15768114827

8. Services

Dinghua offer below-mentioned services for our customers:

Your inquiry will be replied in 24 hours.

Technology support. Provide Demo operation video for training; if you have time, welcome to our company. Will arr-

ange engineers to show you the operation.

Professional after-sales service team.

Provide shipping/delivery information checking service.

One year guarantee, all life maintain promise.
