Automatic optical bga reballing station The machine DH-A2E is a full automatic BGA rework station with auto chip feeder, display screen(15 inches , 1080P), auto optical CCD alignment system imported from Panasonnic, and carbon fiber heating tubes covered by glass-shield etc. Used for personal...
Aprašymas
Automatic optical bga reballing station
The machine DH-A2E is a full automatic BGA rework station with auto chip feeder,
display screen(15 inches, 1080P), auto optical CCD alignment system imported from
Panasonic, and carbon fiber heating tubes covered by glass-shield, etc. Used for pers-
onal repairing, munitions factory or University laboratory and other departments.
The product parameter of Automatic optical BGA reballing station
Total Power | 5200W |
Top heater | 1200W |
Bottom heater | 2nd 1200W, 3rd IR heater 2700W |
Power | AC110~240V±10％50/60Hz |
Auto feeding system for chip | |
Operation mode | Two modes: manual and automatic, free choose! HD touch screen, intelligent man-machine, digital system setting. |
Temperature profile storage | 50000 groups |
Optical CCD camera lens Chip feeder | Automatic stretching out and folding to pick and replace BGA chip， PLC controlling |
Camera magnification | 10x - 220x |
Workbench fine-tuning: | ±15mm forward/backward, ±15mm right/left |
Top micrometer | Max 60° |
Placement accuracy: | ±0.01mm |
BGA positioning | Laser positioning, fast and accurate position of PCB and BGA |
PCB position | Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groove PCB bracket + universal fixtures. |
Lighting | Taiwan led working light, 5W, any angle adjustable |
Temperature control | K sensor, close loop |
Temp accuracy | ±1℃ |
PCB size | Max 450×400 mm Min 22×22 mm |
BGA chip | 2x2 - 80x80 mm |
Minimum chip spacing | 0.1mm |
External temper sensor | 1pc |
Dimensions | L600×W700×H850 mm |
Net weight | 70KG |
The product details for automatic optical BGA reballing station
Display screen, 15 inches, 1080P, zoom in/out 10x~220x, all of the dots underneath chip or on
PCB can be seen clearly, imaging distinctly, automatically focus.

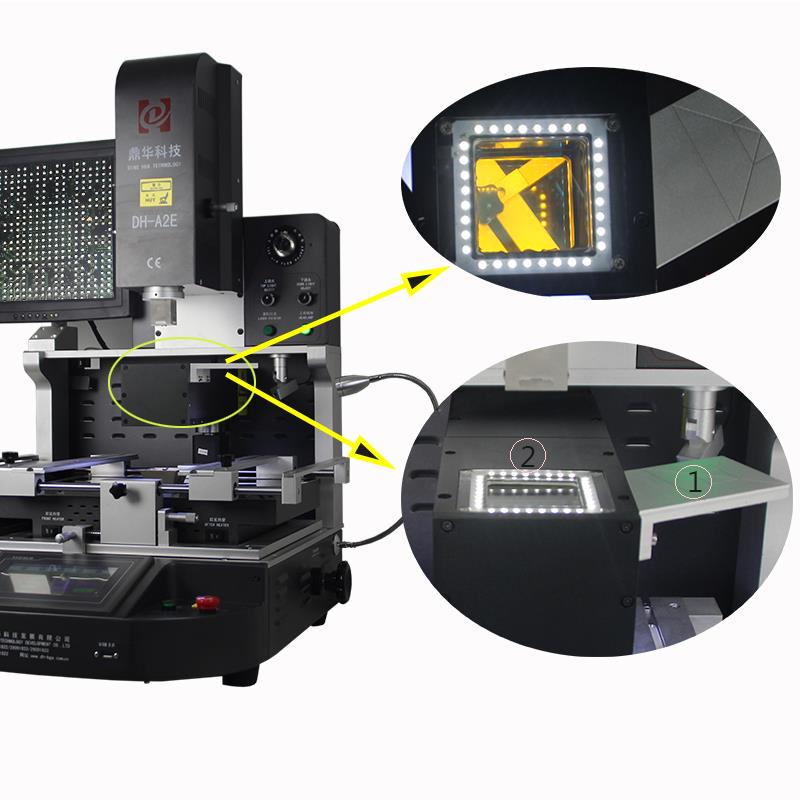

An automatically optical CCD and a chip feeder
This is a high-resolution optical CCD which is used for a PCBA and a chip to be imaged.
"1" is an automatic chip feeder which can be put on a chip with a size up to 80*80mm;
"2" is an optical CCD with a split vision for a PCB vs a chip aligned on a monitor screen.
Both of them are automatically running together for aligning, picked up and replaced, et.c

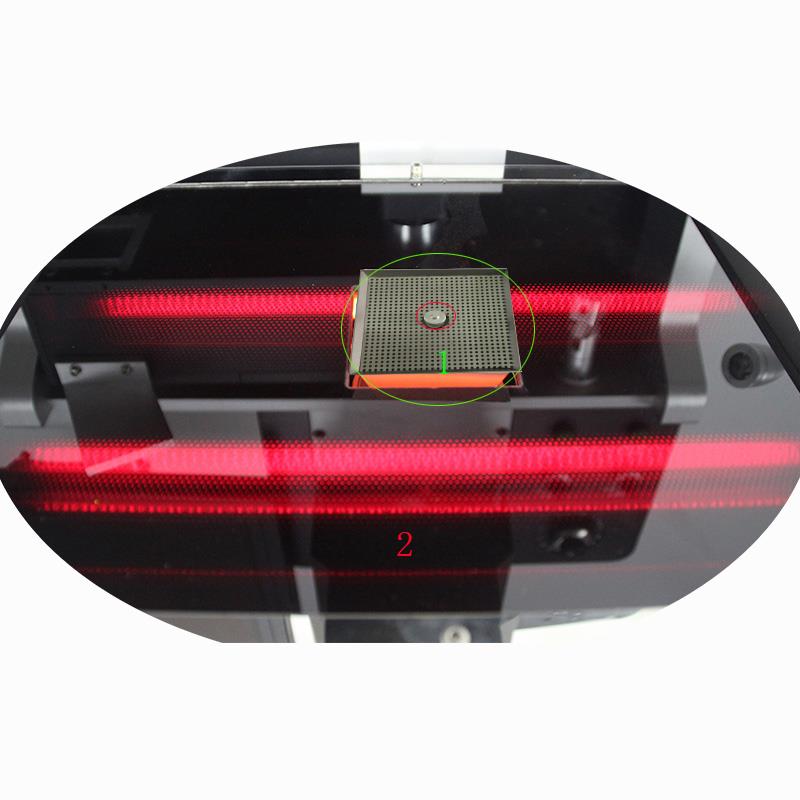

The lower hot air and IR
"1" is the lower hot-air heating nozzle, which can be customized from 2*2~80*80mm, even
though, up to 100*100mm, made of titanium alloy, will not get rusty, and with magnetic pe-
destal, can be installed simply and easily. There is also a small screw-shape at the center of
that nozzle, it can bracket a motherboard with a large size when heating.
"2" is the bottom IR preheating zone, and protected by a special glass covering, these carb-
on core heating tubes installed inside, which can release even heat energy, making a moth-
erboard be protected at the best.
Hot air heating

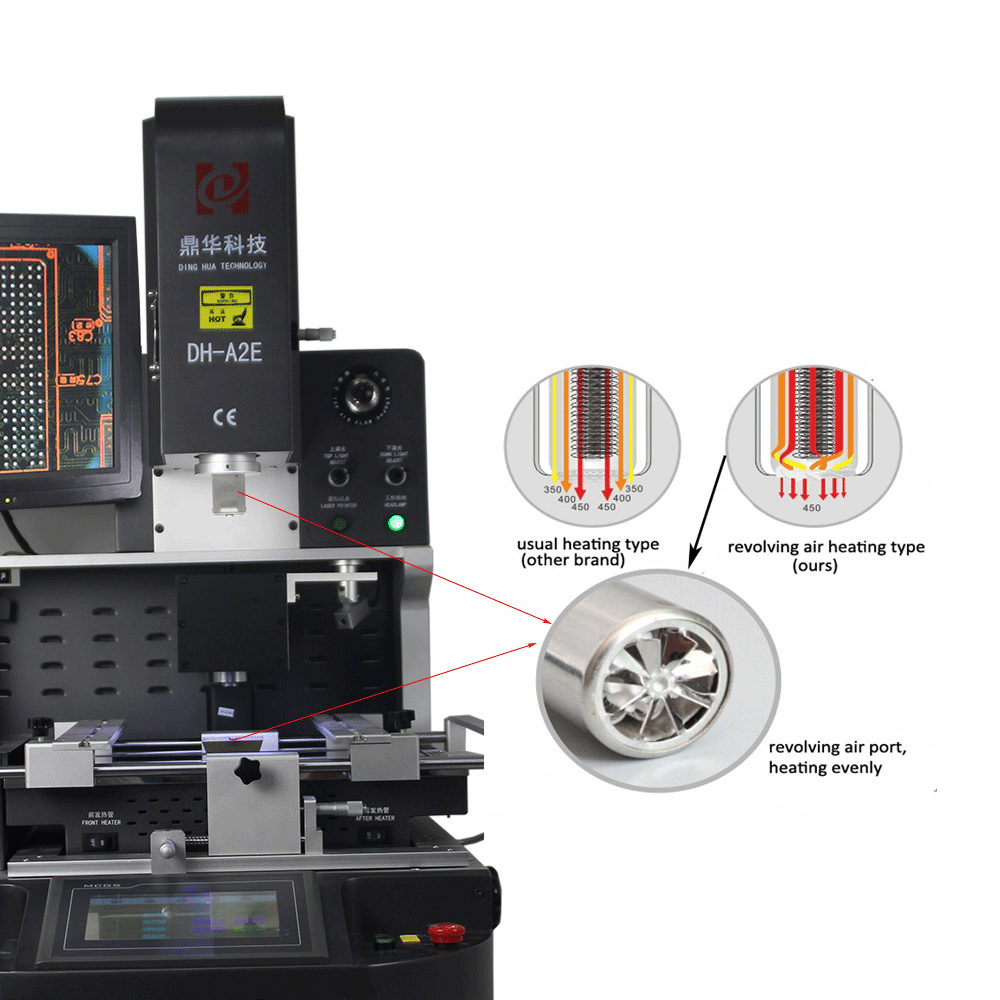

Hot air heaters, upper & bottom heaters for air-flow making solder ball melted so that
soldering or desoldering a chip on a motherboard.
Made of imported materials which feature with even air-flow, and lasting heat, its using
life is more than 10 years.
Our spare parts supplied by famous companies

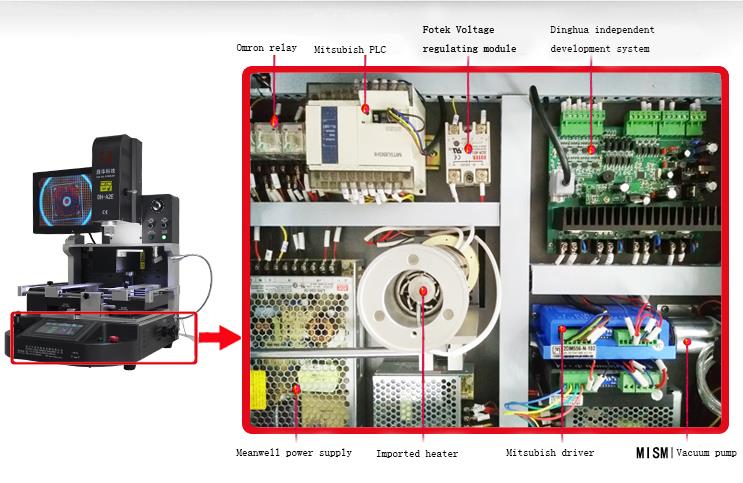

Such as, Omron relay, Mitsubish PLC, Meanwell power supply, etc.
